ASTM A588 Steel Beam
Key Words：
Subclassification：
H Beam
Email：
Product introduction
ASTM A588 Steel Beam
Hot rolled ASTM A588 steel beam
ASTM A588 steel beam not only enjoys high tensile & yield strength but also exhibits good resistance against atmospheric corrosion for its small copper content. Given its high strength, it weighs less than A36 steel section without a reduction in strength. At the same time, it is the best material for outdoor applications and shows orange-brown surface.
Product description:
- Item: ASTM A588 Steel Beam.
- Technology: hot rolled.
- Surface treatment: black, galvanized or primed.
- Sizes: IPN & IPE european standard.
- Web width: 42 - 215 mm.
- Depth: 80 - 600 mm.
- Web thickness: 3.8 - 21.6 mm.
- Note: Special steel beam sizes are customized on order.
Technical data
| Steel grade | Carbon, max, % | Manganese, % | Phosphorus, max, % | Sulfur, max, % | Silicon, % | Nickel, max, % | Chromium, % | Copper | Vanadium, % |
| A588 grade A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
| Steel grade | Styles | Tensile Sstrength, ksi [MPa] | Yield point, min, ksi [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| A588 grade A | Steel angles | 70 [485] | 50 [345] | 18 | 21 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPE 80 | 6.0 | 80 | 46 | 3.8 | 5.2 |
| IPE 100 | 8.1 | 100 | 55 | 4.1 | 5.7 |
| IPE 120 | 10.4 | 120 | 64 | 4.4 | 6.3 |
| IPE 140 | 12.9 | 140 | 73 | 4.7 | 6.9 |
| IPE 160 | 15.8 | 160 | 82 | 5.0 | 7.4 |
| IPE 180 | 18.8 | 180 | 91 | 5.3 | 8.0 |
| IPE 200 | 22.4 | 200 | 100 | 5.6 | 8.5 |
| IPE 220 | 26.2 | 220 | 110 | 5.9 | 9.2 |
| IPE 240 | 30.7 | 240 | 120 | 6.2 | 9.8 |
| IPE 270 | 36.1 | 270 | 135 | 6.6 | 10.2 |
| IPE 300 | 42.2 | 300 | 150 | 7.1 | 10.7 |
| IPE 330 | 49.1 | 330 | 160 | 7.5 | 11.5 |
| IPE 360 | 57.1 | 360 | 170 | 8 | 12.7 |
| IPE 400 | 66.3 | 400 | 180 | 8.6 | 13.6 |
| IPE 450 | 79.1 | 450 | 190 | 9.4 | 14.6 |
| IPE 500 | 90.7 | 500 | 200 | 10.2 | 16 |
| IPE 550 | 106.0 | 550 | 210 | 11.2 | 17.2 |
| IPE 600 | 124.4 | 600 | 220 | 12 | 19 |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |
ASTM A588 applications:
As a result of A588 steel beam bearing copper content, it is very suitable for outdoor applications for its excellent atmospheric corrosion resistance.
- Bridges, buildings & construction equipment.
- Frame for cars and machinery.
- Transmission & communication towers.

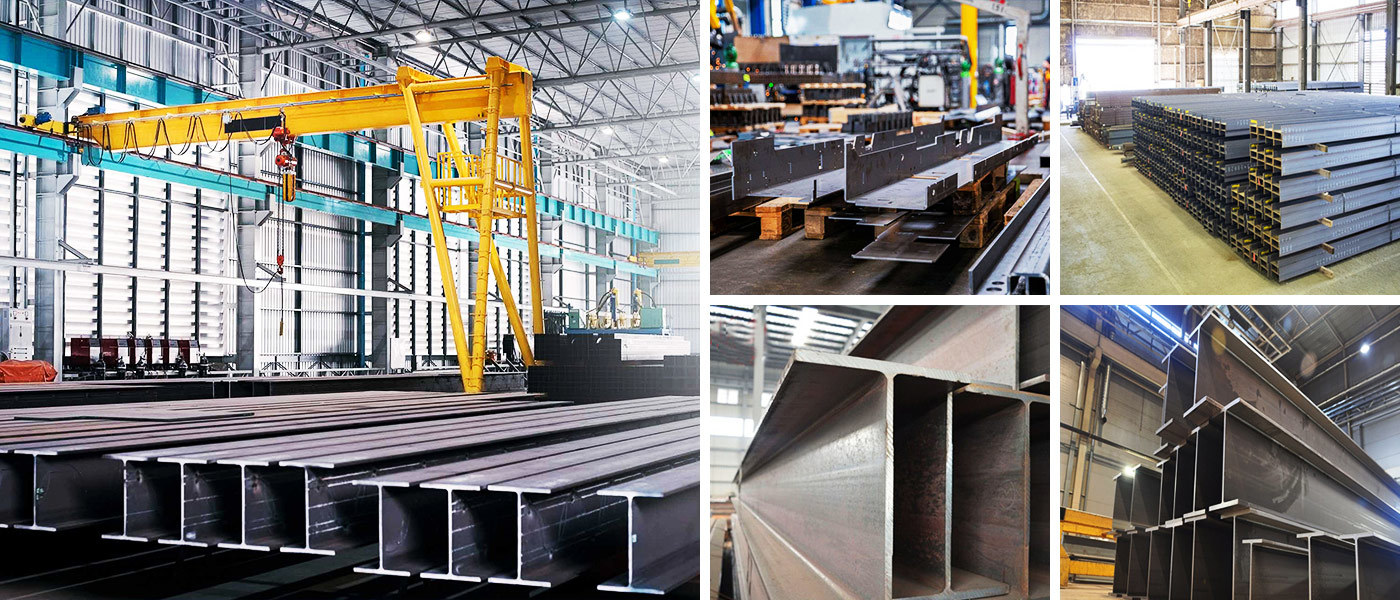

Warehouse storage
The group company and factory cover an area of more than 800 mu, with more than 1,500 employees, and its business covers more than 20 countries and regions around the world. Xinghan Group is committed to developing new types of steel products and building a first-class coated sheet and steel manufacturing enterprise with international competitiveness. Xinghan Group hopes to grow into a widely respected and sustainable global resource-based enterprise through continuous pursuit of excellence, create better social, economic and environmental benefits, and bring more competitive value returns to employees and customers.

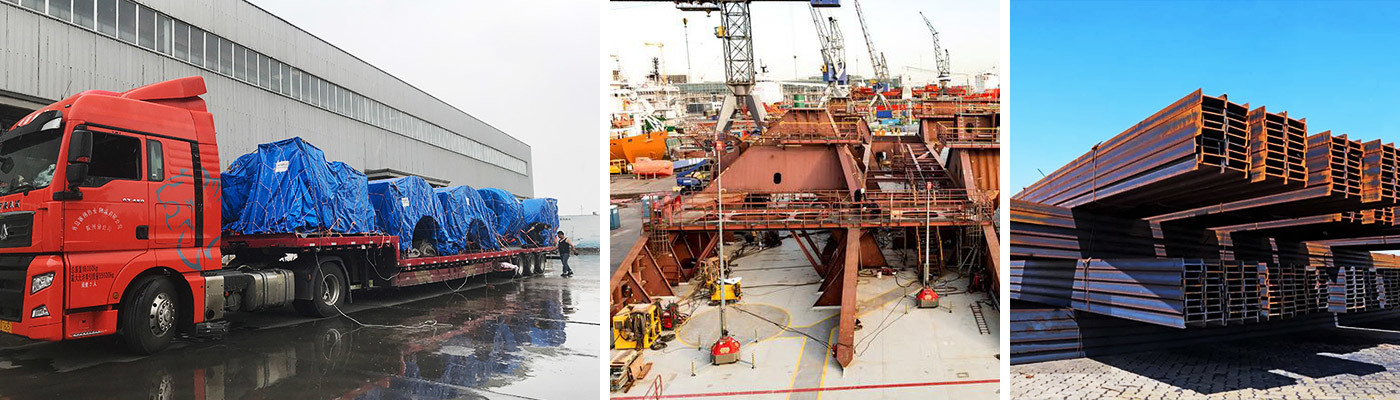

Packing and delivery
The company has major production lines such as pickling, cold rolling, hot dip galvanizing, hot dip galvanizing, thick plate galvanizing and color coating, forming an annual production capacity of 1 million tons of pickling coil, 1 million tons of cold rolled sheet and 900,000 tons of hot dip galvanized sheet. Galvanized and hot-dip galvanized aluminum zinc silicon steel sheet scale 450,000 tons thick galvanized steel plate scale 300,000 tons color coated steel plate scale is one of the largest steel and non-ferrous metal smelting and processing suppliers in Shandong Province.
Customer visit
The company adheres to the development strategy of "seeking development by science and technology, seeking efficiency by management", adheres to the core values of "people-oriented, integrity, responsibility and excellence", adheres to the development system of "green products and green industry", "promotes high-quality beyond development in an all-round way", and realizes the vision of "building a first-class aluminum processing service enterprise with international competitiveness".
Application field
The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.
Related Products
FAQ
Q:Can you provide sample ?
A: We can provide the samll samples in stock for free, as long as you contact us. Customized samples will take about 5-7days.
Q:How many coutries you already exported ?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q:How long is your delivery time?
A:Within 5 days for stock size, 15-30 days for customized size.
Q:How can I get an accurate quote?
A:Please provide the information of prodcuts standard, material, size and quantity.
Q:When can I get your reply after the inquiry.
A:Within 15 minutes during working time, whthin 12 hours during non-working time.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness,coating and the number of tons you need to purchase.
Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
