ABS Grade EH32 Shipbuilding Steel Plate

Structural steel for ship hulls is divided into strength classes
according to its minimum yield strength: general strength
structural steel and high strength structural steel. Maine steel
plate refers to hot rolled steel plate produced in accordance with
the requirements of the classication society for the construction
of ship hull structures.

Key Words：

Subclassification：

Shipbuilding Steel Plate

Email：

cnxh002@xhsteelgroup.com

Send Email

Brief introduction of marine steel plate

Marine steel plate refers to structural steel used in ship building. It is considered a marine grade and must be able to resist corrosive effects that are common in a water environment. To achieve this, special alloying elements are added to these grades in order to defend agaist corrosion.While most carbon steel is not suited for marine environments, there are several marine grade carbon steels that have been approved by the different societies for shipbuilding applications.

Structural steel for ship hulls is divided into strength classes according to its minimum yield strength: general strength structural steel and high strength structural steel. Maine steel plate refers to hot rolled steel plate produced in accordance with the requirements of the classication society for the construction of ship hull structures.

There are 9 main classification societies in worldwide.
A.B.S    American Bureau of Shipping
B.V.     Bureau Veritas
C.C.S.   China Classification Society
D.N.V   Det Norske Veritas
G.L.    Germanischer Lloyd
K.R.    Korean Register of Shipping
L.R.    Lloyd’s Register of Shipping
N.K.    Nippon Kaiji Kyokai
R.I.N.A Registro Italiano Navale

Grade AH32 steel is the impact force subjected to 0 ° C
Grade DH32 steel impact force at -20 ° C
Grade EH32 steel impact force at -40 ° C
Grade FH32 steel impact force at -60 ° C

Shot blasting service
Shot blasting is a method used to clean or polish steel when enhanced surface finishes are required. Shot blasting is used in almost every industry we serve. Especially in shipbuilding, rail,structural fabrication and more.

Specifications range
Thickness:2.5-120mm
Width:1000-3000mm
Length: As request

Chemical composition and mechanical properties

Chemical Composition

Steel grade	C	Si	Mn	P	S	Als
Grade AH32	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade DH32	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade EH32	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade FH32	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015

Grade D, E (DH32, DH36, EH 32, EH 36)
Grade D and E series (inlcuding AH32/36, DH32, DH36, EH32, EH36) shipbuilding steel plates require good low temperature toughness and good welding performance. The production high-strength shipbuilding steel plate needs to be normalized by means of controlled rolling and controlled cooling or heat treatment processes with more complete equipment. At the same time, the internal steel purity of the supplied billets is required to be high, especially the content of S, P, N, 0 and H in the steel should be strictly controlled.

Alloy Elements Added to Improve Toughness
In order to ensure the performance of high-strength ship plates, micro-alloying technology is adopted. By adding Nb, V, Ti and other alloying elements to the steel, combined with the controlled rolling process, the grain is refined and the toughness is improved.
Direction of Development for Shipbuilding Plate
High strength, high specification, with the ship's large-scale and safety, and changes in coating specifications, the demand for ordinary A-class panels is gradually reduced, and the demand for high-strength panels is increasing, which is concentrated in large ships of 5m wide. Plate, 200-300mm thickness special thick ship board.

Mechanical Properties

Steel grade	Yield point/MPa	Tensile point /MPa	Elongation/%	Temperature/° C	V-type impact test
					Akv/J
					≤50MM	50-70MM	70-100MM
Grade AH32	≥315	440-570	≥22	0	31/22	38/26	46/31
Grade DH32	≥315	440-570	≥22	-20	31/22	38/26	46/31
Grade EH32	≥315	440-570	≥22	-40	31/22	38/26	46/31
Grade FH32	≥315	440-570	≥22	-60	31/22	38/26	46/31

Storage video

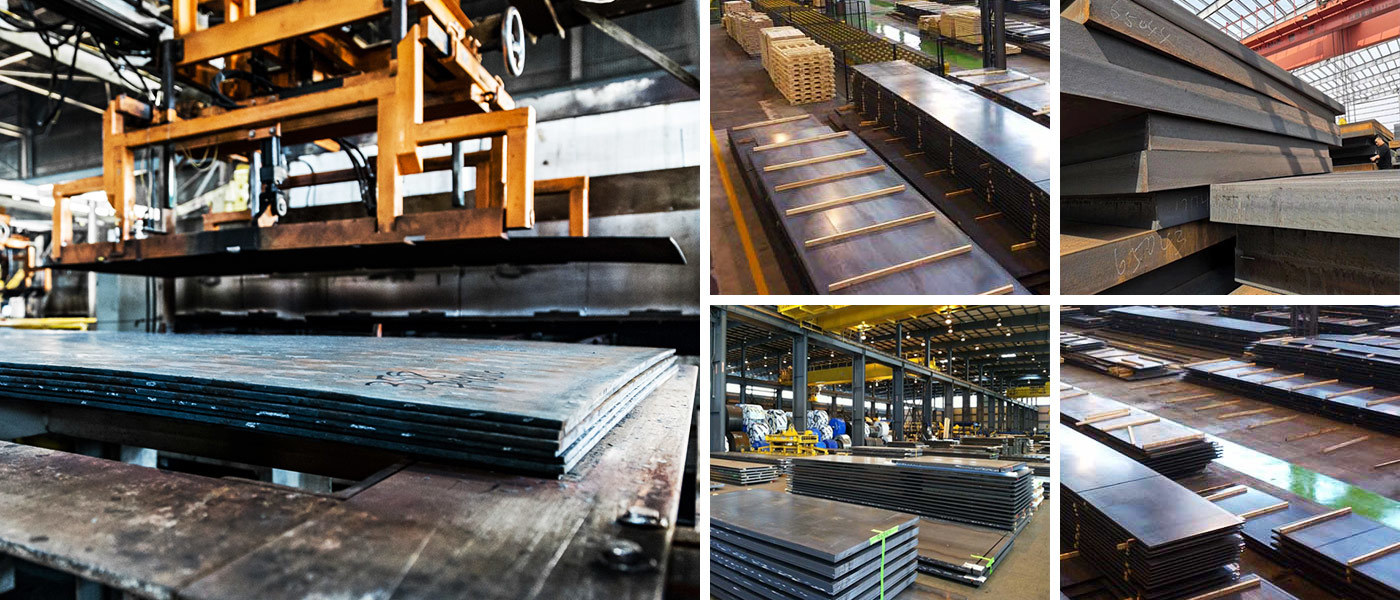

Warehouse storage

The group company and factory cover an area of more than 800 mu, with more than 1,500 employees, and its business covers more than 20 countries and regions around the world. Xinghan Group is committed to developing new types of steel products and building a first-class coated sheet and steel manufacturing enterprise with international competitiveness. Xinghan Group hopes to grow into a widely respected and sustainable global resource-based enterprise through continuous pursuit of excellence, create better social, economic and environmental benefits, and bring more competitive value returns to employees and customers.

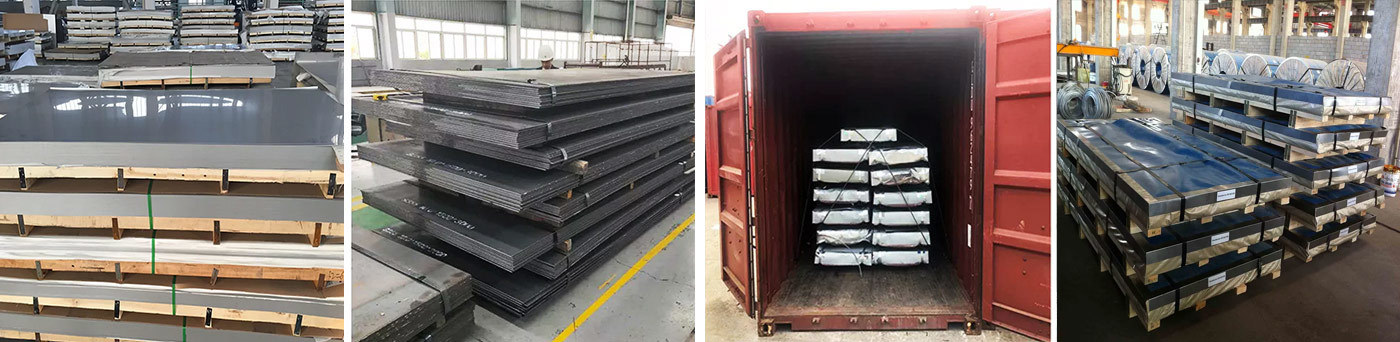

Packing and delivery

The company has major production lines such as pickling, cold rolling, hot dip galvanizing, hot dip galvanizing, thick plate galvanizing and color coating, forming an annual production capacity of 1 million tons of pickling coil, 1 million tons of cold rolled sheet and 900,000 tons of hot dip galvanized sheet. Galvanized and hot-dip galvanized aluminum zinc silicon steel sheet scale 450,000 tons thick galvanized steel plate scale 300,000 tons color coated steel plate scale is one of the largest steel and non-ferrous metal smelting and processing suppliers in Shandong Province.

Customer visit
The company adheres to the development strategy of "seeking development by science and technology, seeking efficiency by management", adheres to the core values of "people-oriented, integrity, responsibility and excellence", adheres to the development system of "green products and green industry", "promotes high-quality beyond development in an all-round way", and realizes the vision of "building a first-class aluminum processing service enterprise with international competitiveness".

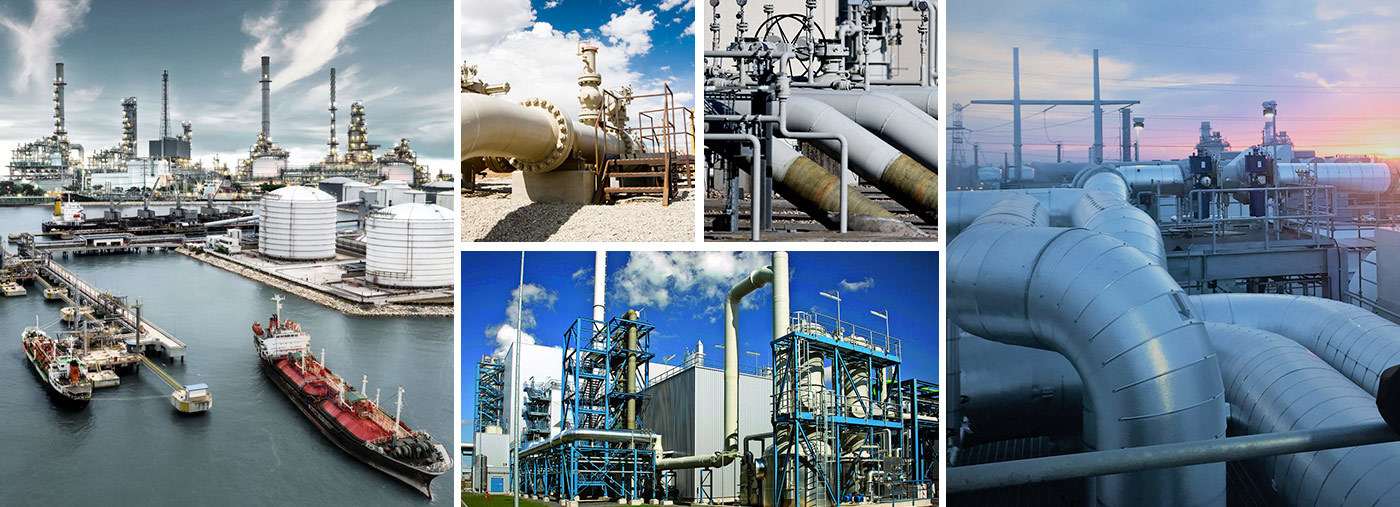

Application field

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.
